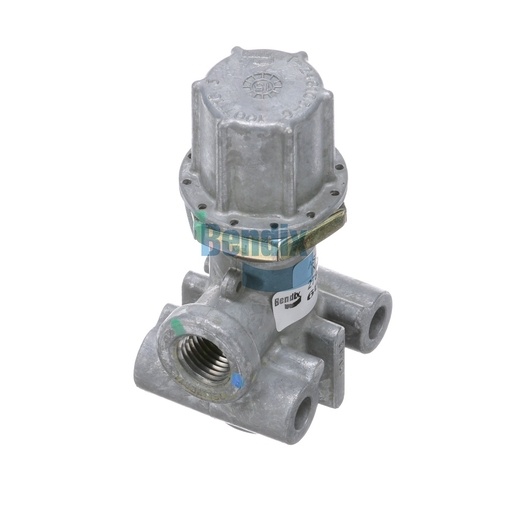

278426N
Pressure Reducing Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Pressure Reducing Valve is a vital component of your vehicle's braking system, designed to regulate and limit air pressure to ensure safe and efficient brake operation. This adjustable valve provides precise control over the air supply, enhancing the responsiveness of your braking system. Built from high-quality materials, it can withstand harsh conditions and operates effectively within a broad temperature range, from -40°F to 200°F. Its user-friendly design allows for easy installation and maintenance, making it a preferred choice for both fleet operators and individual owners. Ensuring that your braking system functions optimally is critical for safety on the road. When it comes to sourcing genuine Bendix parts, Source One Parts Center is the ideal choice, providing you with authentic products that guarantee quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Delivery Pressure
65 PSI
Harmonized System (HS) Code
848120
Height
86.4 mm (3.4 in)
Product Type
Adjustable
Country of Origin
Mexico
Exhaust Port
Vent
Mounting
Ø .28 IN (2x)
Weight
0.62 lb
