278427

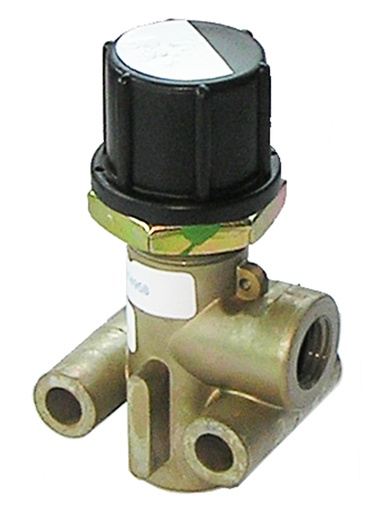

Pressure Reducing Valve
Bendix
IN STOCK
10 are currently available
Ships within 1 business day
$134.95
$161.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Pressure Reducing Valve is crucial for maintaining optimal pressure levels in your air system, ensuring safe and effective braking performance. This adjustable valve is designed to regulate delivery pressure to a consistent 50 PSI, with robust construction that withstands the demands of heavy-duty applications. Its compact design allows for easy installation and integration into existing systems, providing reliable performance under various conditions. With a net weight of 0.2 kg, it is a lightweight yet essential part of your vehicle's braking system. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is your trusted supplier, offering quality components that enhance safety and functionality.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Delivery Pressure
50 PSI
Harmonized System (HS) Code
848120
Height
86.4 mm (3.4 in)
Product Type
Adjustable
Country of Origin
Mexico
Exhaust Port
Vent
Mounting
Ø .28 IN (2x)
Weight
0.49 lb
