279716N

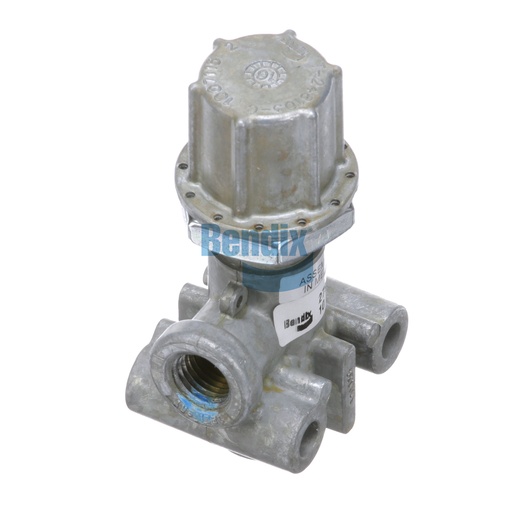

Pressure Reducing Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Pressure Reducing Valve from Bendix is designed to optimize air pressure in your vehicle’s braking system, ensuring precise control and enhanced safety. With a delivery pressure of 10 PSI and adjustable features, this valve allows for tailored performance based on the specific needs of your vehicle. Its robust construction can withstand extreme temperatures ranging from -40 °F to 200 °F, making it reliable under any condition. The compact dimensions and light weight of 0.3 kg simplify installation, ensuring that maintenance is both efficient and effective. By choosing genuine Bendix OEM parts from Source One Parts Center, you ensure your vehicle is equipped with the best components for superior performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Delivery Pressure
10 PSI
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Harmonized System (HS) Code
848120
Height
86.4 mm (3.4 in)
Product Type
Adjustable
Country of Origin
Mexico
Exhaust Port
Vent
Mounting
Ø .28 IN (2x)
Weight
0.62 lb
