$91.95
$110.34
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

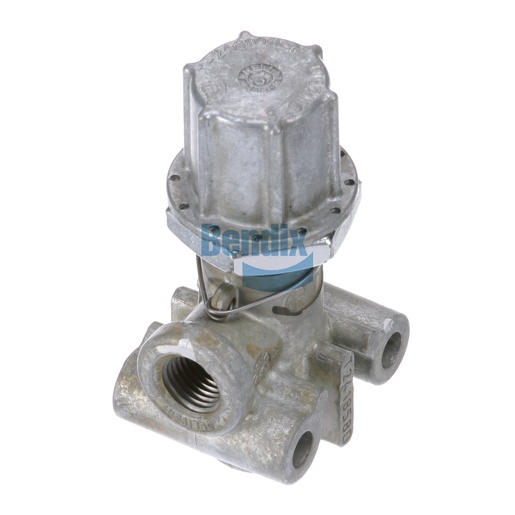

Ensure optimal performance and safety in your braking system with the Bendix Pressure Reducing Valve. This essential component is designed to regulate air pressure effectively, providing consistent braking performance under varying load conditions. With a compact design that allows for easy installation, this valve is ideal for both new and existing brake systems. The Bendix Pressure Reducing Valve is built to withstand high-pressure environments, ensuring durability and longevity. With a maximum operating temperature of 200 °F, it performs reliably across a wide range of conditions. For those who demand quality and reliability in their braking systems, this valve is an ideal choice. When looking for genuine Bendix OEM parts, Source One Parts Center is your trusted partner for quality and service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Delivery Pressure
40 PSI
Length
49.1 mm (1.94 in)
Harmonized System (HS) Code
848120,848140
Height
86.4 mm (3.4 in)
Product Type
Adjustable (with Locking Wire)
Country of Origin
Mexico
Exhaust Port
Vent
Mounting
Ø .28 IN (2x)
Weight
0.62 lb
