$134.95
$161.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

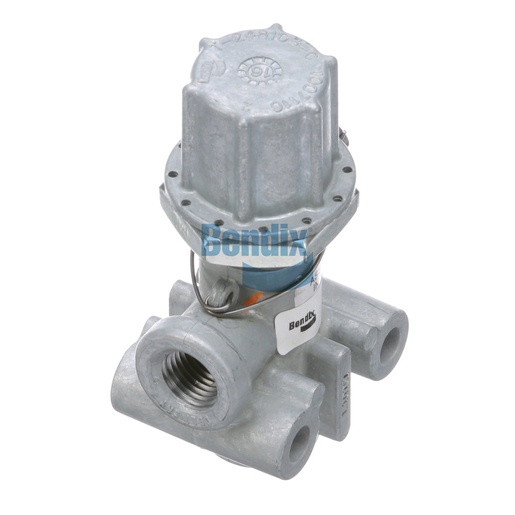

The Bendix Pressure Reducing Valve is a key component in managing air pressure within the braking system of commercial vehicles. This valve is designed to provide precise control, ensuring that the air pressure remains within optimal limits for efficient brake operation. Weighing just 0.53 lb, it is compact yet highly effective in maintaining safety standards. With an adjustable delivery pressure of 60 PSI, this valve enhances braking performance, contributing to improved vehicle control and safety. The high-quality construction ensures durability, making it an essential part for fleet operators aiming to enhance their vehicles’ braking systems. For acquiring genuine Bendix OEM parts, Source One Parts Center is your best resource, committed to providing quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Delivery Pressure
60 PSI
Harmonized System (HS) Code
848120
Height
86.4 mm (3.4 in)
Product Type
Adjustable (with Locking Wire)
Country of Origin
Mexico
Exhaust Port
Vent
Mounting
Ø .28 IN (2x)
Weight
0.53 lb
