$109.95
$131.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

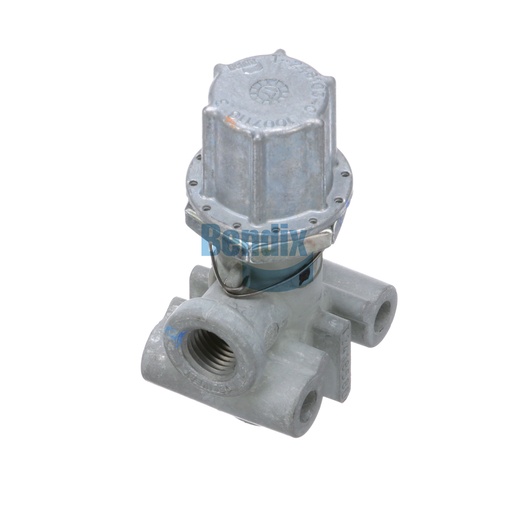

The Bendix Pressure Reducing Valve is a vital element in your vehicle's braking system, ensuring consistent and safe operation. This adjustable valve provides a delivery pressure of 110 PSI, crucial for maintaining optimal brake performance, especially during heavy-duty operations. Designed to handle extreme temperatures from -40°F to 200°F, it ensures reliability in various environmental conditions. Its compact size, measuring 1.44 inches in width and 3.4 inches in height, allows for easy installation even in tight spaces. The durable construction ensures a long service life, reducing the need for frequent replacements and maintenance. By choosing this genuine Bendix part, you are investing in your vehicle's safety and performance. Source One Parts Center stands out as the best source for authentic Bendix OEM parts, providing you with the confidence that your commercial vehicle is equipped with top-quality components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Delivery Pressure
110 PSI
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Harmonized System (HS) Code
848120
Height
86.4 mm (3.4 in)
Product Type
Adjustable (with Locking Wire)
Country of Origin
Mexico
Exhaust Port
Vent
Mounting
Ø .28 IN (2x)
Weight
0.62 lb
