283590

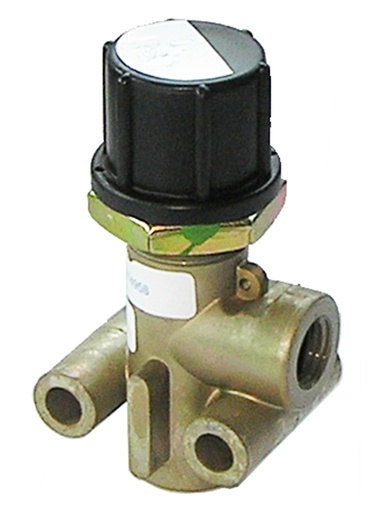

Pressure Reducing Valve
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$144.95
$173.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Pressure Reducing Valve is a vital component in any commercial vehicle's air system, designed to effectively regulate and maintain optimal pressure levels. This adjustable valve ensures consistent performance under varying conditions, preventing pressure spikes that could damage other components. Constructed from high-quality materials, the valve withstands the rigors of heavy-duty use, ensuring long-lasting reliability. Its easy installation process makes it a practical choice for fleet operators, allowing for efficient maintenance. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is your best destination for quality and assurance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Delivery Pressure
70 PSI
Harmonized System (HS) Code
848120
Height
86.4 mm (3.4 in)
Product Type
Adjustable (with Locking Wire)
Country of Origin
Mexico
Exhaust Port
Vent
Mounting
Ø .28 IN (2x)
Weight
0.62 lb
