283590N

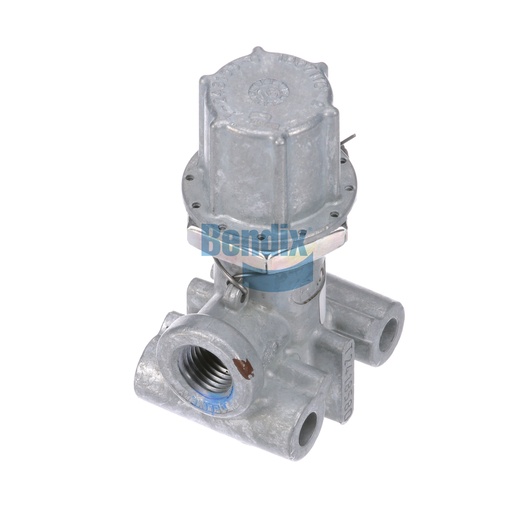

Pressure Reducing Valve
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$144.95
$173.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix pressure reducing valve is an essential component of your air brake system, designed to maintain optimal air pressure levels for safe and efficient braking. This valve features an adjustable design, allowing for precise control of pressure settings to suit your specific vehicle needs. With its robust construction, it provides reliable performance even under the most demanding conditions. Easy to install and compatible with various truck models, this valve ensures that your braking system operates smoothly and effectively. Choosing this pressure reducing valve means investing in the safety and reliability of your vehicle. Source One Parts Center is your go-to source for genuine Bendix OEM parts, ensuring you have the best components for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Delivery Pressure
70 PSI
Harmonized System (HS) Code
848120
Height
86.4 mm (3.4 in)
Product Type
Adjustable (with Locking Wire)
Country of Origin
Mexico
Exhaust Port
Vent
Mounting
Ø .28 IN (2x)
Weight
0.62 lb
