285093N

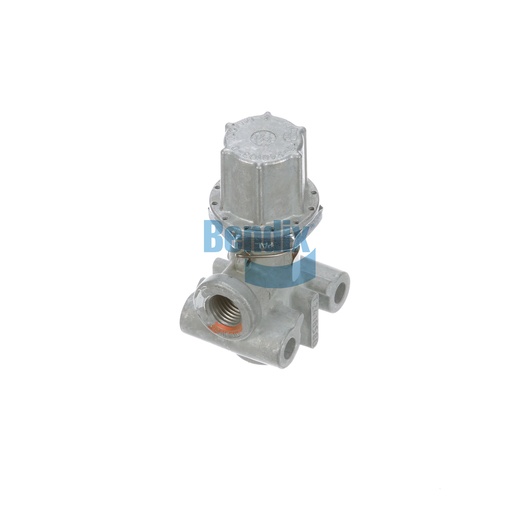

Pressure Reducing Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Pressure Reducing Valve from Bendix is an essential component for maintaining consistent air pressure in your vehicle's brake system. This valve is designed to regulate air pressure effectively, ensuring that your brakes perform reliably under various conditions. With its robust construction, it can withstand the harsh environments often encountered in commercial operations, providing long-lasting performance. Its adjustable design allows for customized settings, making it versatile for different applications. The straightforward installation process minimizes downtime, allowing your vehicle to remain operational. Trust Source One Parts Center for your Bendix OEM parts, ensuring you receive quality components that enhance your vehicle's performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Delivery Pressure
125 PSI
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Harmonized System (HS) Code
848120
Height
86.4 mm (3.4 in)
Product Type
Adjustable (with Locking Wire)
Country of Origin
Mexico
Exhaust Port
Vent
Mounting
Ø .28 IN (2x)
Weight
0.62 lb
