$134.95
$161.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

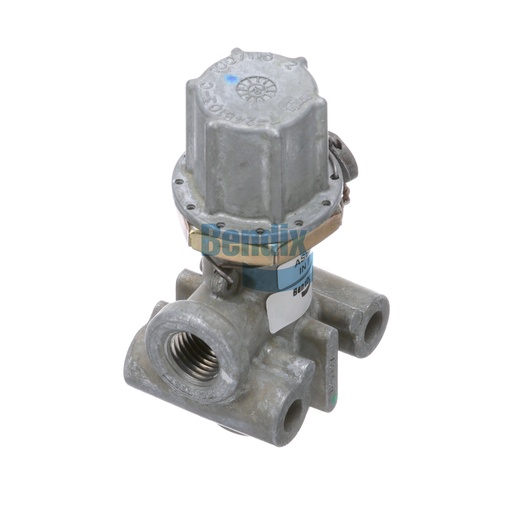

The Pressure Reducing Valve is a critical component in managing air pressure within your truck's braking system. This valve ensures that air pressure is maintained at optimal levels, providing consistent and reliable brake performance. Designed for durability and ease of installation, it effectively regulates the air supply to various systems, preventing over-pressurization and ensuring safety on the road. Its robust construction allows it to withstand high-stress conditions, making it perfect for heavy-duty applications. By incorporating a Bendix Pressure Reducing Valve into your vehicle, you can enhance the overall performance and safety of your braking system. Trust Source One Parts Center for the best selection of genuine Bendix OEM parts to maintain your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Delivery Pressure
47 PSI
Length
49.1 mm (1.94 in)
Harmonized System (HS) Code
848120
Height
86.4 mm (3.4 in)
Product Type
Adjustable (with Locking Wire)
Country of Origin
Mexico
Exhaust Port
Vent
Mounting
Ø .28 IN (2x)
Weight
0.62 lb
