288380N

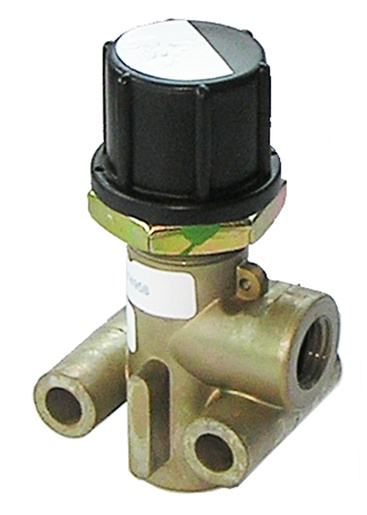

Pressure Reducing Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Pressure Reducing Valve is a vital component for maintaining optimal pressure levels in your Bendix air brake system. Designed to deliver precise pressure control, this valve plays a crucial role in ensuring that your braking system functions safely and effectively. With an adjustable delivery pressure of 65 PSI, it allows for customization to meet specific vehicle requirements, making it an ideal choice for diverse applications in heavy-duty trucks. Built to withstand harsh conditions, with a maximum operating temperature of 200 °F, this valve is both durable and reliable. Weighing only 0.57 lb, it is lightweight yet robust, making installation straightforward. When you choose to buy genuine Bendix OEM parts from Source One Parts Center, you can be confident that you are investing in quality components that enhance the safety and performance of your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Delivery Pressure
65 PSI
Harmonized System (HS) Code
848120
Height
86.4 mm (3.4 in)
Product Type
Adjustable (with Locking Wire)
Country of Origin
Mexico
Exhaust Port
Vent
Mounting
Ø .28 IN (2x)
Weight
0.57 lb
