288397N

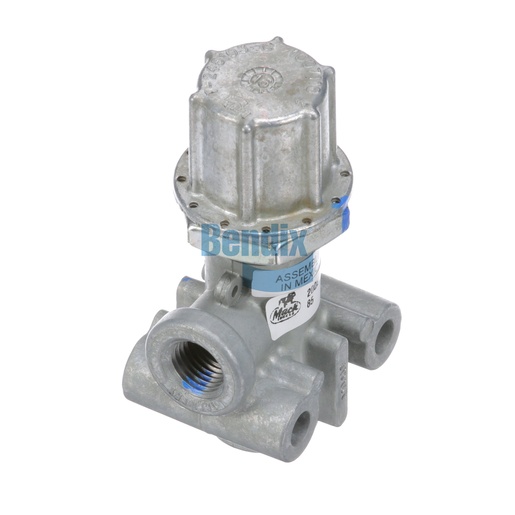

Pressure Reducing Valve
Bendix
IN STOCK
2 are currently available
Ships within 1 business day
$199.95
$239.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Bendix’s Pressure Reducing Valve is essential for maintaining optimal air pressure within your vehicle's braking system. This valve is engineered to provide adjustable pressure control, which is crucial for ensuring efficient braking performance under varying load conditions. It operates within a temperature range of -40°F to 200°F, making it highly reliable in extreme conditions. Its durable construction and straightforward installation process make it perfect for both new and existing braking systems, enhancing safety and performance. By selecting Source One Parts Center for your Bendix OEM parts, you can ensure you are getting authentic components that support your vehicle's efficiency and reliability, giving you peace of mind on the road.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Harmonized System (HS) Code
848120
Delivery Pressure
85 PSI
Height
86.4 mm (3.4 in)
Product Type
Adjustable
Country of Origin
Mexico
Exhaust Port
Vent
Mounting
Ø .28 IN (2x)
Weight
0.62 lb
