288947

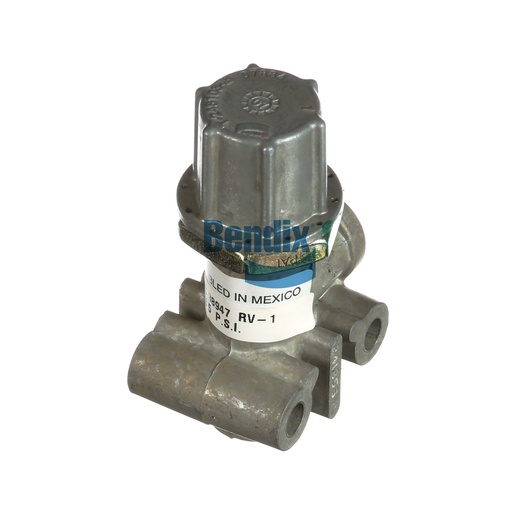

Pressure Reducing Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Pressure Reducing Valve from Bendix is vital for maintaining the correct air pressure in your vehicle's braking system, ensuring optimal performance and safety. With an adjustable delivery pressure of 55 PSI, this valve allows for customization based on the specific needs of your vehicle. Built to withstand challenging conditions, its temperature range of -40 °F to 200 °F ensures reliable operation in various environments. Weighing only 0.3 kg, it is compact and easy to install, making it an ideal choice for maintenance and repairs. For those in search of the best genuine Bendix OEM parts, Source One Parts Center is your trusted partner, ensuring top-quality components for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Delivery Pressure
55 PSI
Harmonized System (HS) Code
848120
Height
86.4 mm (3.4 in)
Product Type
Adjustable
Country of Origin
Mexico
Exhaust Port
Vent
Mounting
Ø .28 IN (2x)
Weight
0.62 lb
