101916N

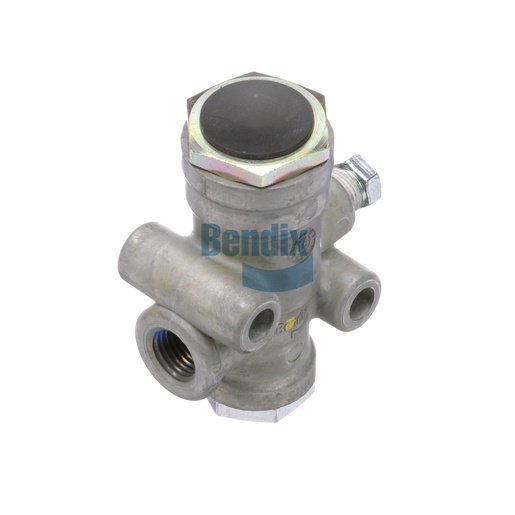

Pressure Reducing Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Pressure Reducing Valve is engineered to regulate air pressure in your braking system, providing enhanced safety and performance. This non-adjustable valve is pre-set to deliver consistent pressure, ensuring reliable operation across various conditions. With a delivery pressure of 55 PSI, it effectively manages the air flow to the brake system, contributing to improved braking efficiency. This valve is designed for easy integration, featuring multiple ports for seamless installation. Its net weight of 0.3 kg ensures it is lightweight yet durable. This crucial component aids in maintaining optimal braking functionality, making it essential for any commercial vehicle. Choose Source One Parts Center for authentic Bendix OEM parts, ensuring your vehicle operates at peak performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Control Port
1/8-27 NPT (Plugged)
Maximum Operating Temperature
200 °F (93 °C)
Width
35.1 mm (1.38 in)
Delivery Pressure
55 PSI
Length
58.2 mm (2.29 in)
Height
75.2 mm (2.96 in)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Product Type
Non-Adjustable (Pre-Set)
Mounting
Ø .28 IN (2x)
Weight
0.6 lb
