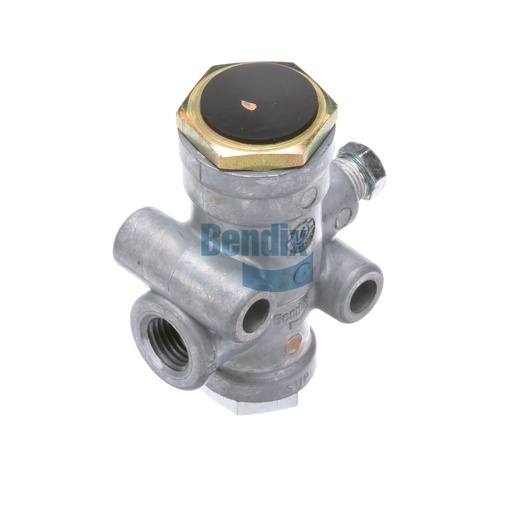

102196N
Pressure Reducing Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Pressure Reducing Valve is a vital component in your vehicle's air brake system, ensuring that the system operates efficiently and reliably. Designed with precision, this valve regulates air pressure to provide consistent performance, enhancing the safety and responsiveness of your brakes. With its robust construction, it can withstand the demanding conditions of commercial applications, ensuring longevity and minimizing maintenance needs. This valve is easy to install and compatible with various Bendix systems, making it an essential part for any truck owner looking to maintain optimal braking performance. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is the best choice for quality and reliability, providing peace of mind with every purchase.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Control Port
1/8-27 NPT (Plugged)
Maximum Operating Temperature
200 °F (93 °C)
Width
35.1 mm (1.38 in)
Length
58.2 mm (2.29 in)
Height
75.2 mm (2.96 in)
Harmonized System (HS) Code
848120
Delivery Pressure
90 PSI
Exhaust Port
Dust Shield
Country of Origin
Mexico
Product Type
Non-Adjustable (Pre-Set)
Mounting
Ø .28 IN (2x)
Weight
0.64 lb
