$119.95
$143.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

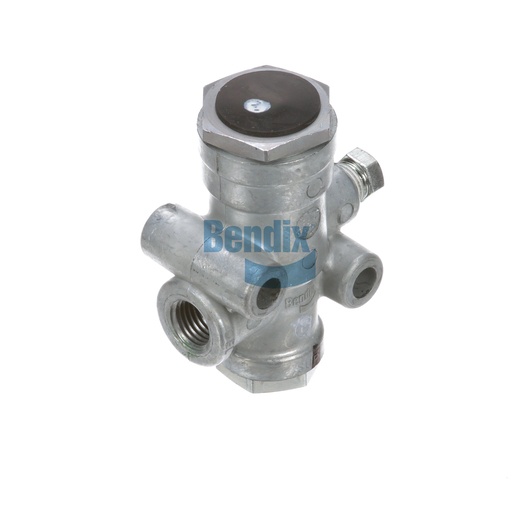

The Bendix Pressure Reducing Valve is designed to enhance the efficiency and safety of air brake systems in commercial vehicles. This valve maintains consistent air pressure, preventing over-pressurization and ensuring reliable brake performance under various conditions. With a compact design and lightweight construction, it is easy to install and fits seamlessly into existing brake systems. The valve operates efficiently across a temperature range of -40 °F to 200 °F, making it suitable for demanding environments. Its adjustable features allow for precise control, enhancing overall braking response and safety. By choosing the Bendix Pressure Reducing Valve, fleet operators can trust in the performance and reliability of their vehicles’ braking systems. Source One Parts Center is the premier choice for genuine Bendix OEM parts, ensuring quality and expert support for all your commercial vehicle requirements.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Control Port
1/8-27 NPT (Plugged)
Delivery Pressure
110 PSI
Maximum Operating Temperature
200 °F (93 °C)
Width
35.1 mm (1.38 in)
Length
58.2 mm (2.29 in)
Height
75.2 mm (2.96 in)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Product Type
Non-Adjustable (Pre-Set)
Mounting
Ø .28 IN (2x)
Weight
0.64 lb
