103998

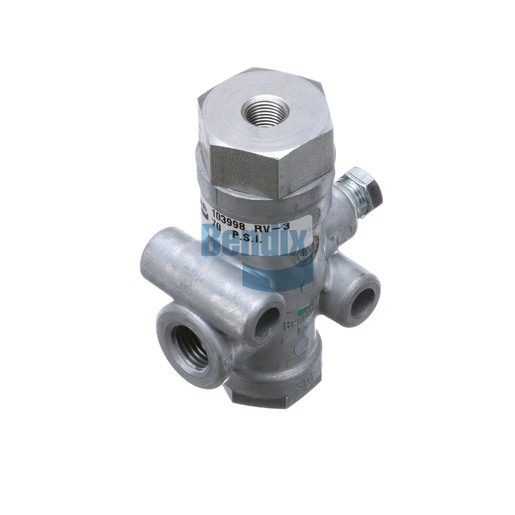

Pressure Reducing Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Pressure Reducing Valve from Bendix is an essential component in managing air pressure within the braking system of commercial vehicles. Designed to maintain optimal pressure levels, this valve ensures that your brakes function effectively and reliably. Weighing only 0.3 kg (0.6 lb), this lightweight yet sturdy valve is easy to install and integrates seamlessly into existing systems. It operates efficiently within a wide temperature range, making it suitable for various applications. The valve is manufactured in Mexico, adhering to Bendix's high standards for quality and durability. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center stands out as the best option, ensuring you receive authentic components that enhance your vehicle's performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Control Port
1/8-27 NPT (Plugged)
Maximum Operating Temperature
200 °F (93 °C)
Width
35.1 mm (1.38 in)
Length
58.2 mm (2.29 in)
Delivery Pressure
70 PSI
Height
81.8 mm (3.22 in)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Product Type
Non-Adjustable (Pre-Set)
Mounting
Ø .28 IN (2x)
Weight
0.6 lb
