5001648

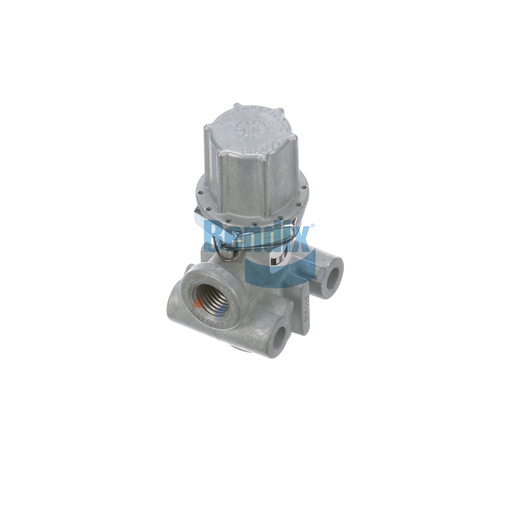

Pressure Reducing Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Pressure Reducing Valve is an integral component for maintaining optimal air pressure in your vehicle's braking system. This adjustable valve is designed to regulate pressure effectively, ensuring that the braking system operates at the required levels for maximum safety and performance. It has a compact design with a net weight of just 0.3 kg, making it easy to install without compromising on durability. The valve features a range of technical specifications, including a delivery pressure of 55 PSI, which makes it suitable for various commercial applications. Its robust construction ensures that it can withstand harsh operating conditions, providing peace of mind to fleet operators. For high-quality, genuine Bendix OEM parts, Source One Parts Center is your go-to source, ensuring reliability and performance in every component.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Delivery Pressure
55 PSI
Harmonized System (HS) Code
848120
Height
86.4 mm (3.4 in)
Product Type
Adjustable (with Locking Wire)
Country of Origin
Mexico
Exhaust Port
Vent
Mounting
Ø .28 IN (2x)
Weight
0.62 lb
