803037

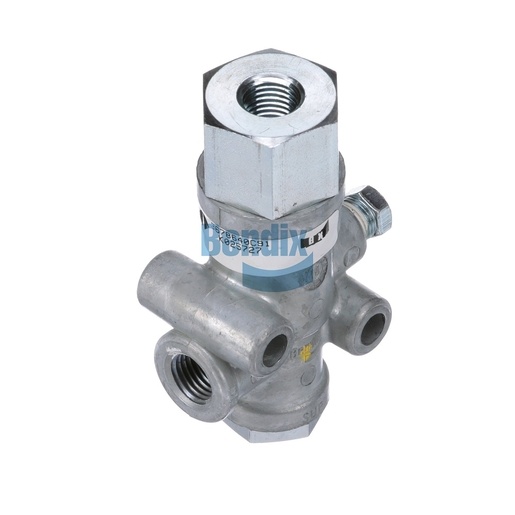

Pressure Reducing Valve
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$129.95
$155.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Pressure Reducing Valve is an integral component of your vehicle's air brake system, designed to maintain optimal pressure levels and enhance safety during operation. Engineered for non-adjustable, pre-set performance, this valve helps prevent over-pressurization, ensuring that your brake system operates efficiently and effectively under various load conditions. With a delivery pressure range between 50.8 and 55.1 PSI, it is built to withstand the rigors of heavy-duty use, making it an essential part for commercial vehicles. Its durable construction ensures longevity and reliability, contributing to the overall safety and performance of your braking system. Weighing in at just 0.84 pounds, the valve is easy to install without compromising on power or performance. For genuine Bendix OEM parts that ensure your vehicle's braking system functions at its best, Source One Parts Center is the premier choice.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Delivery Port 1
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Control Port
1/8-27 NPT (Plugged)
Maximum Operating Temperature
200 °F (93 °C)
Width
35.1 mm (1.38 in)
Delivery Pressure
50.8 -55.1 PSI
Length
58.2 mm (2.29 in)
Harmonized System (HS) Code
848120
Height
90.2 mm (3.55 in)
Country of Origin
Mexico
Product Type
Non-Adjustable (Pre-Set)
Mounting
Ø .28 IN (2x)
Weight
0.84 lb
