$144.95
$173.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

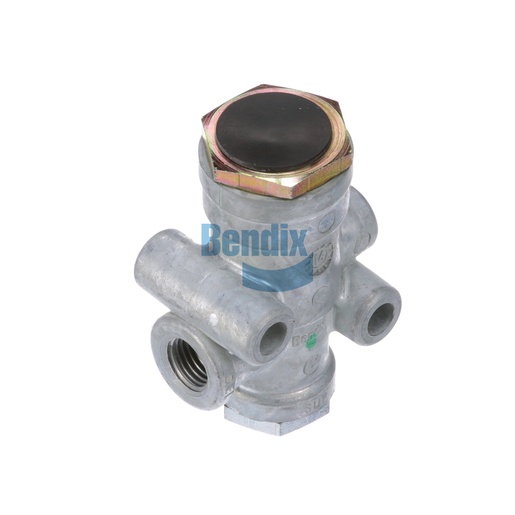

The Pressure Reducing Valve is a critical component in the Bendix braking system, designed to regulate air pressure and ensure optimal performance in commercial vehicles. This valve is engineered for durability and reliability, providing precise control over braking forces to enhance safety and efficiency. With a compact design and easy installation, it is ideal for various applications, making it a preferred choice for fleet operators. The valve's robust construction ensures it can withstand the demands of heavy-duty use, providing reliable performance over time. For those in search of high-quality truck parts, Source One Parts Center is the best choice for genuine Bendix OEM components, ensuring your vehicles operate at peak performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Control Port
1/8-27 NPT (Plugged)
Maximum Operating Temperature
200 °F (93 °C)
Width
35.1 mm (1.38 in)
Delivery Pressure
39.2 - 47.9 PSI
Length
58.2 mm (2.29 in)
Height
75.2 mm (2.96 in)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Product Type
Non-Adjustable (Pre-Set)
Mounting
Ø .28 IN (2x)
Weight
0.62 lb
