$109.95
$131.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

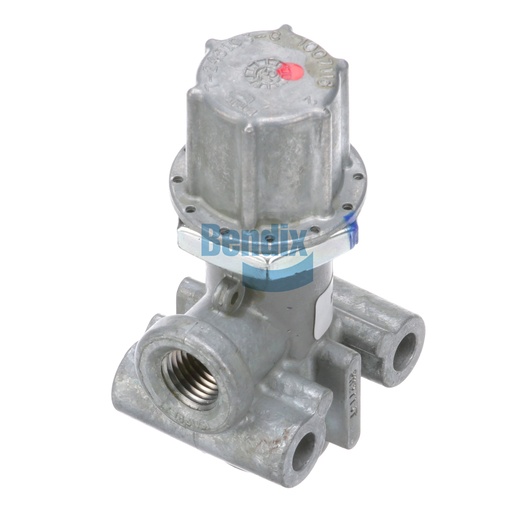

The Pressure Protection Valve is a critical component in maintaining the integrity of your vehicle's air brake system. By regulating and protecting air pressure levels, this valve prevents potential system failures that could compromise safety. Its robust design allows it to withstand extreme temperatures, ensuring reliable performance in diverse conditions. With an adjustable closing pressure, it can be tailored to meet specific operational requirements, enhancing the overall efficiency of your braking system. Easy to install and compatible with various setups, this valve is essential for fleet operators and truck owners who prioritize safety and performance. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, providing high-quality solutions that keep your commercial vehicles operating effectively and safely.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-044: Pressure Protection Valve - Air Brake System
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Harmonized System (HS) Code
848120
Closing Pressure
85 ± 5 PSI
Height
88.1 mm (3.47 in)
Product Type
Adjustable
Country of Origin
Mexico
With Delivery Check Valve
No
Mounting
Ø .271 IN (2x)
Weight
0.65 lb
