$114.95
$137.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

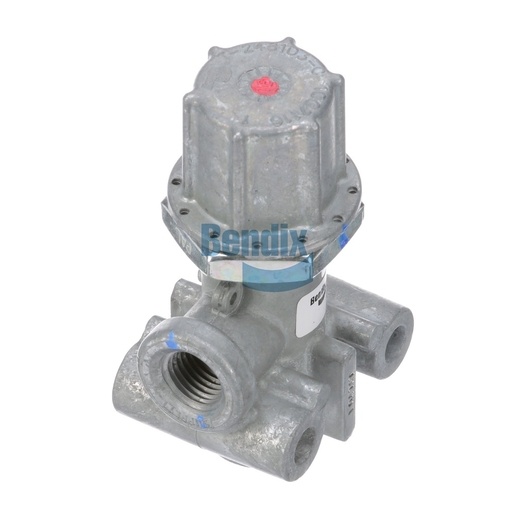

The Bendix Pressure Protection Valve is an essential component for maintaining the integrity of air brake systems, preventing pressure loss and ensuring safe operation. This valve features a compact design that allows for easy installation in tight spaces, making it suitable for various commercial applications. With a closing pressure of 95 ± 5 PSI, it effectively regulates air pressure to enhance braking performance. Operating efficiently across a temperature range from -40°F to 200°F, this valve is built to withstand harsh conditions. When you need quality and reliability, Source One Parts Center is your go-to destination for genuine Bendix OEM parts.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-044: Pressure Protection Valve - Air Brake System
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Harmonized System (HS) Code
848120,848140
Height
88.1 mm (3.47 in)
Closing Pressure
95 ± 5 PSI
Product Type
Adjustable
Country of Origin
Mexico
With Delivery Check Valve
No
Mounting
Ø .271 IN (2x)
Weight
0.62 lb
