$129.95
$155.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

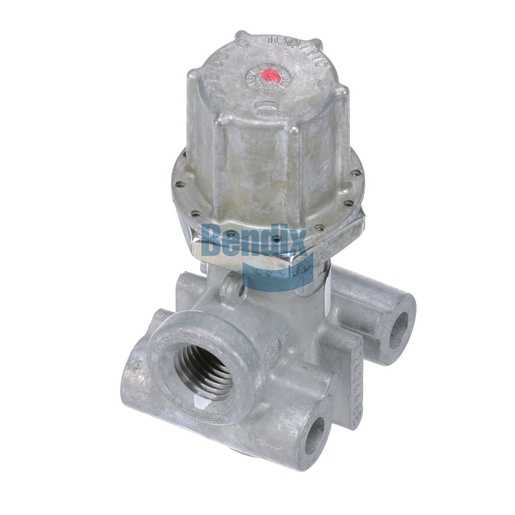

The Bendix Pressure Protection Valve is a crucial component for maintaining optimal air pressure in your vehicle’s braking system, ensuring safety and efficiency. Designed for durability and reliability, this adjustable valve regulates air pressure effectively, preventing over-pressurization and ensuring smooth operation of your braking system. With a lightweight design at only 0.3 kg, it is easy to install and manage, making it a perfect choice for commercial vehicles. The valve operates efficiently in a wide range of temperatures, ensuring consistent performance in various environmental conditions. For genuine Bendix OEM parts, Source One Parts Center offers the best selection, ensuring that your vehicle is equipped with top-quality components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-044: Pressure Protection Valve - Air Brake System
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Closing Pressure
60 ± 5 PSI
Harmonized System (HS) Code
848120,848140
Height
88.1 mm (3.47 in)
Product Type
Adjustable
Country of Origin
Mexico
With Delivery Check Valve
No
Mounting
Ø .271 IN (2x)
Weight
0.63 lb
