$119.95
$143.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

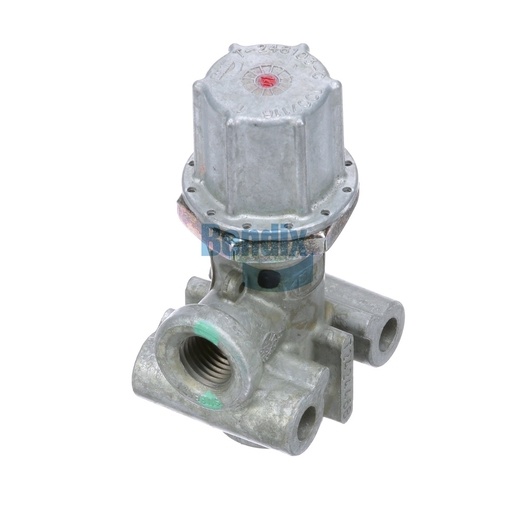

The Pressure Protection Valve is a crucial safety component in your vehicle's air brake system, designed to regulate air pressure and prevent potential system failures. This adjustable valve controls the delivery pressure and ensures that the braking system receives the correct air supply, enhancing overall safety and reliability. With a compact design and robust construction, it is built to perform under extreme conditions, making it ideal for heavy-duty applications. This valve is essential for maintaining optimal brake performance and preventing backflow that could compromise system integrity. By incorporating this pressure protection valve into your braking system, you can significantly improve safety and efficiency on the road. For genuine Bendix OEM parts, Source One Parts Center stands out as the best choice, offering quality and reliability for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-044: Pressure Protection Valve - Air Brake System
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Closing Pressure
75 ± 5 PSI
Harmonized System (HS) Code
848120
Height
88.1 mm (3.47 in)
Product Type
Adjustable
Country of Origin
Mexico
With Delivery Check Valve
No
Mounting
Ø .271 IN (2x)
Weight
0.6 lb
