$124.95
$149.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

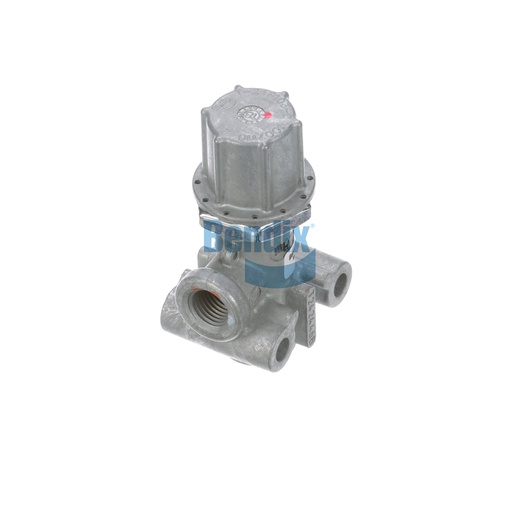

The Bendix Pressure Protection Valve is an essential component of your vehicle's air brake system, designed to maintain optimal air pressure levels for safe braking performance. This valve prevents air loss in the braking system, ensuring that your truck operates safely under heavy loads. Weighing just 0.2 kg, it is compact yet robust, providing the reliability needed for commercial vehicles. By selecting genuine Bendix OEM parts like this pressure protection valve, you guarantee quality and performance that you can trust. For the best deals on authentic Bendix parts, Source One Parts Center is your go-to destination, offering everything you need for your commercial vehicle's maintenance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-044: Pressure Protection Valve - Air Brake System
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Closing Pressure
80 ± 5 PSI
Harmonized System (HS) Code
848120
Height
88.1 mm (3.47 in)
Product Type
Adjustable
Country of Origin
Mexico
With Delivery Check Valve
No
Mounting
Ø .271 IN (2x)
Weight
0.35 lb
