279505N

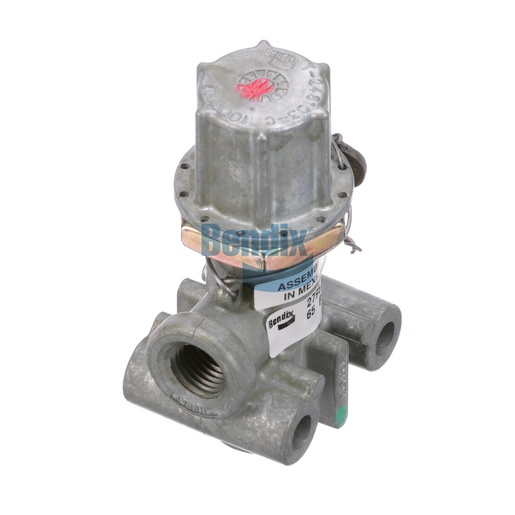

Pressure Protection Valve
Bendix
BACK ORDERED
Please contact us for information on lead time
$119.95
$143.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Pressure Protection Valve is crucial for maintaining the integrity of air brake systems in commercial vehicles. This compact valve, weighing just 0.2 kg (0.46 lb), is designed to regulate air pressure and prevent system overloads, ensuring that your brakes function effectively. Its robust construction and precise engineering make it reliable under various operating conditions. By using a genuine Bendix Pressure Protection Valve, you can enhance the safety and performance of your vehicle's braking system. The easy installation process allows for quick maintenance, reducing downtime for your fleet. Source One Parts Center is the best choice for sourcing authentic Bendix OEM parts, providing the quality and reliability that your commercial vehicles demand.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-044: Pressure Protection Valve - Air Brake System
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Closing Pressure
65 ± 5 PSI
Harmonized System (HS) Code
848120
Height
88.1 mm (3.47 in)
Product Type
Adjustable (with Locking Wire)
Country of Origin
Mexico
With Delivery Check Valve
No
Mounting
Ø .271 IN (2x)
Weight
0.46 lb
