285537

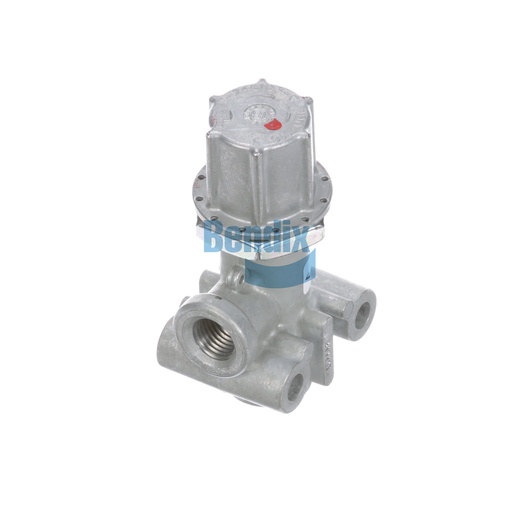

Pressure Protection Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix pressure protection valve is an integral component of your vehicle's brake system, designed to safeguard against pressure loss and ensure reliable braking performance. With a closing pressure of 65 ± 5 PSI, this adjustable valve effectively maintains optimal air pressure within the braking system, enhancing safety and control. Designed for durability, it operates efficiently under extreme temperature conditions, making it suitable for a wide range of applications. The compact design allows for easy installation, ensuring that it integrates seamlessly into your existing system. For those who prioritize quality and reliability in their vehicle components, Source One Parts Center is the best destination for genuine Bendix OEM parts, ensuring that your braking system operates at its best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-044: Pressure Protection Valve - Air Brake System
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Closing Pressure
65 ± 5 PSI
Harmonized System (HS) Code
848120
Height
88.1 mm (3.47 in)
Product Type
Adjustable
Country of Origin
Mexico
With Delivery Check Valve
No
Mounting
Ø .271 IN (2x)
Weight
0.46 lb
