$124.95
$149.94
FINAL SALE. No returns or exchanges.

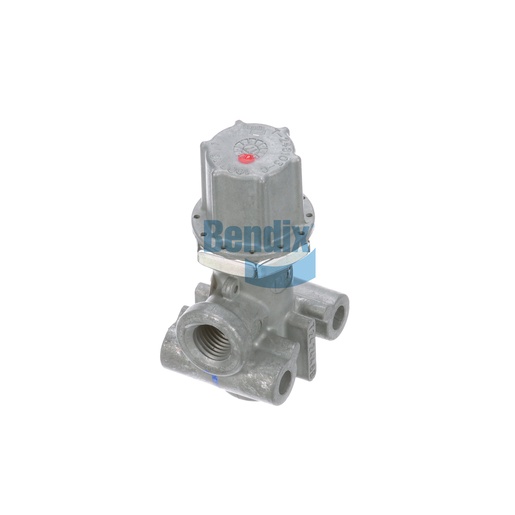

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Pressure Protection Valve is essential for safeguarding the air brake system in commercial vehicles, ensuring that air pressure is maintained for optimal brake function. This Bendix valve is engineered to handle high pressures, with a closing pressure set at 90 ± 5 PSI, allowing for efficient air distribution and preventing system failures. Its adjustable design ensures flexibility in various applications, making it a reliable choice for fleet operators. The valve's construction is designed for durability, with the ability to perform in extreme temperatures ranging from -40°F to 200°F. Regular maintenance and timely replacement of the pressure protection valve are crucial for the safety and efficiency of the braking system. For quality and authentic Bendix OEM parts, Source One Parts Center is your best source, providing a wide selection and exceptional customer service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-044: Pressure Protection Valve - Air Brake System
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Harmonized System (HS) Code
848120
Height
88.1 mm (3.47 in)
Closing Pressure
90 ± 5 PSI
Product Type
Adjustable
Country of Origin
Mexico
With Delivery Check Valve
No
Mounting
Ø .271 IN (2x)
Weight
0.62 lb
