285541

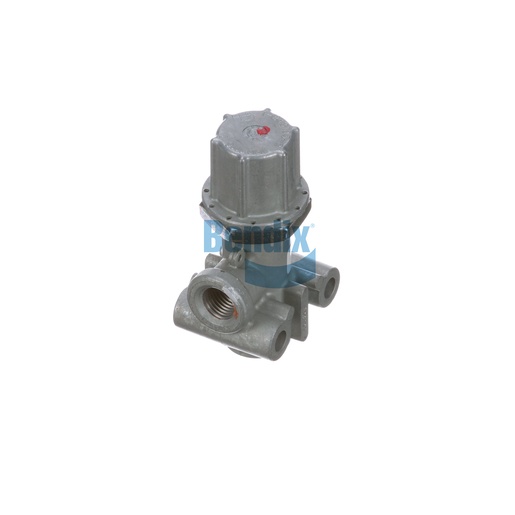

Pressure Protection Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Pressure Protection Valve from Bendix is pivotal for maintaining the integrity of air brake systems in commercial vehicles. This adjustable valve is designed to prevent excessive pressure build-up, which can lead to system failures and safety hazards. With a closing pressure set at 75 ± 5 PSI and an easy installation process, it ensures that your air brake system operates smoothly under varying conditions. Its robust construction, capable of withstanding temperatures from -40 °F to 200 °F, guarantees reliability and long-term performance. The valve is compact, with a weight of only 0.3 kg, making it easy to integrate into your vehicle's existing setup. For those seeking quality and reliability, Source One Parts Center is your best choice for genuine Bendix OEM parts, ensuring your commercial vehicles remain safe and efficient on the road.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-044: Pressure Protection Valve - Air Brake System
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Closing Pressure
75 ± 5 PSI
Harmonized System (HS) Code
848120
Height
88.1 mm (3.47 in)
Product Type
Adjustable
Country of Origin
Mexico
With Delivery Check Valve
No
Mounting
Ø .271 IN (2x)
Weight
0.62 lb
