OR277148

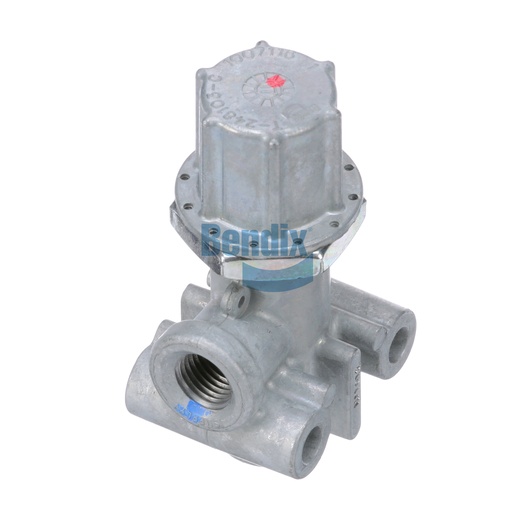

CORELESS VALVE
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The CORELESS VALVE is a critical component in ensuring the efficient operation of your air brake system. Designed for pressure protection, this valve helps maintain appropriate air pressure levels, preventing potential system failures. Its adjustable design allows for precise control of air delivery, ensuring optimal braking performance. Made with durable materials, it is built to withstand harsh conditions, providing reliable operation in heavy-duty applications. For sourcing quality components, Source One Parts Center is the best choice for genuine Bendix OEM parts, guaranteeing the performance and safety of your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-044: Pressure Protection Valve - Air Brake System
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Harmonized System (HS) Code
848120
Closing Pressure
85 ± 5 PSI
Height
88.1 mm (3.47 in)
Product Type
Adjustable
Country of Origin
Mexico
With Delivery Check Valve
No
Mounting
Ø .271 IN (2x)
Weight
0.62 lb
