101275N

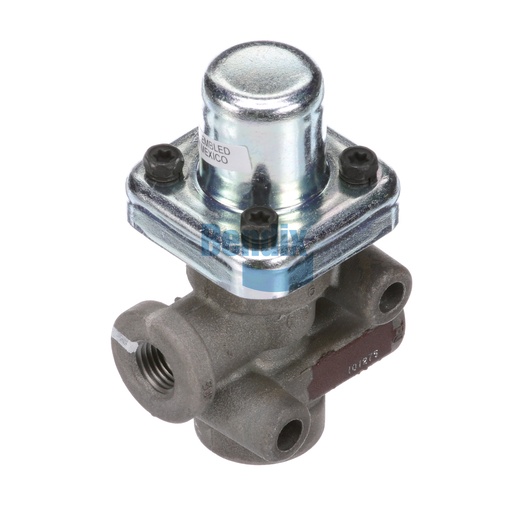

Pressure Protection Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Pressure Protection Valve is a crucial component that safeguards your air brake system from pressure loss. This valve is designed to automatically maintain air pressure, ensuring that your braking system operates effectively and safely. Its non-adjustable design allows for consistent performance, reducing the risk of system failure and enhancing vehicle safety. Built to withstand extreme conditions, this valve is a reliable choice for commercial vehicles operating in various environments. For those looking to enhance their vehicle’s braking reliability, Source One Parts Center is the leading destination for authentic Bendix OEM parts.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-044: Pressure Protection Valve - Air Brake System
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
47.8 mm (1.88 in)
Length
63.5 mm (2.5 in)
Closing Pressure
70 ± 5 PSI
Harmonized System (HS) Code
848120
Height
96.0 mm (3.78 in)
Country of Origin
Mexico
Product Type
Non-Adjustable
With Delivery Check Valve
Yes
Mounting
Ø .280 IN (2x)
Weight
0.71 lb
