101486N

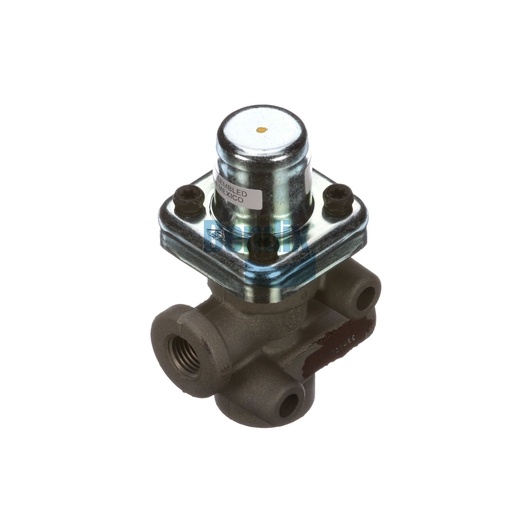

Pressure Protection Valve
Bendix
BACK ORDERED
Please contact us for information on lead time
$174.95
$209.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Pressure Protection Valve is a crucial component designed to enhance the reliability of air brake systems in commercial vehicles. Weighing just 0.3 kg, this valve effectively controls air pressure, ensuring that the braking system functions optimally under various conditions. Its non-adjustable design simplifies installation, while the built-in delivery check valve prevents backflow, maximizing safety and performance. This component is essential for maintaining consistent braking power, particularly in demanding driving environments. For high-quality and reliable Bendix OEM parts, Source One Parts Center stands out as the best choice for fleet operators looking to keep their vehicles in top condition.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-044: Pressure Protection Valve - Air Brake System
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
47.8 mm (1.88 in)
Length
63.5 mm (2.5 in)
Harmonized System (HS) Code
848120
Closing Pressure
85 ± 5 PSI
Height
96.0 mm (3.78 in)
Country of Origin
Mexico
Product Type
Non-Adjustable
With Delivery Check Valve
Yes
Mounting
Ø .280 IN (2x)
Weight
0.73 lb
