102641

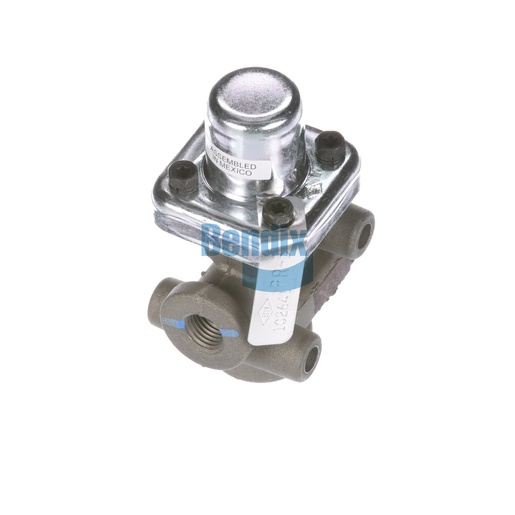

Pressure Protection Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Pressure Protection Valve is a critical component in your vehicle's air brake system, designed to maintain optimal pressure levels and prevent system failures. With precise engineering, this valve effectively manages air flow and pressure, ensuring that your braking system operates smoothly and reliably. The valve is designed to withstand extreme temperatures, making it suitable for a variety of operating conditions. Its compact design allows for easy installation and maintenance, helping to keep your vehicle on the road and functioning at its best. Source One Parts Center is your premier source for genuine Bendix OEM parts, providing the quality and reliability you need for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-044: Pressure Protection Valve - Air Brake System
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Closing Pressure
102 PSI (REF)
Opening Pressure
112 ± 3 PSI
Maximum Operating Temperature
200 °F (93 °C)
Width
47.8 mm (1.88 in)
Length
63.5 mm (2.5 in)
Harmonized System (HS) Code
848120
Height
96.0 mm (3.78 in)
Country of Origin
Mexico
Product Type
Non-Adjustable
With Delivery Check Valve
Yes
Mounting
Ø .280 IN (2x)
Weight
0.73 lb
