$184.95
$221.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

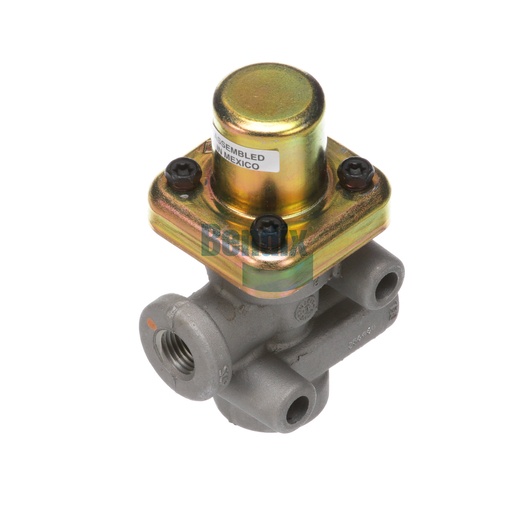

The Bendix pressure protection valve is essential for maintaining proper pressure levels in air brake systems, preventing over-pressurization and ensuring safe operation. Designed with durability in mind, this valve features a maximum operating temperature of 200°F and is crafted to withstand the demands of heavy-duty use. Its compact design allows for straightforward installation, making it a valuable addition to any commercial vehicle's braking system. By choosing authentic Bendix OEM parts from Source One Parts Center, you guarantee your vehicle's braking system operates at its highest efficiency and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-044: Pressure Protection Valve - Air Brake System
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
47.8 mm (1.88 in)
Closing Pressure
60 ± 5 PSI
Length
63.5 mm (2.5 in)
Harmonized System (HS) Code
848120
Height
96.0 mm (3.78 in)
Country of Origin
Mexico
Product Type
Non-Adjustable
With Delivery Check Valve
Yes
Mounting
Ø .280 IN (2x)
Weight
0.62 lb
