065526

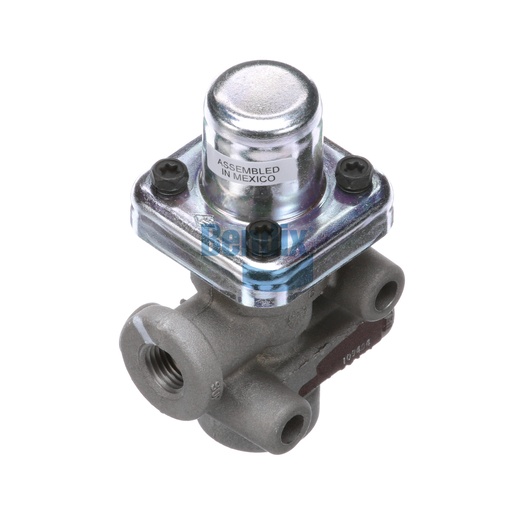

Pressure Protection Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Pressure Protection Valve is an integral part of your air brake system, designed to ensure that the system maintains optimal pressure for effective braking performance. This valve weighs 0.3 kg and is engineered with precision to deliver reliable function, even under extreme conditions. It features a non-adjustable design that simplifies installation and maintenance, making it a go-to choice for fleet operators. Manufactured in Mexico, this valve adheres to high-quality standards, ensuring it performs reliably over time. By choosing Bendix OEM parts, you can rest assured that you are investing in exceptional quality and safety. Source One Parts Center is the best place to purchase genuine Bendix parts, ensuring your truck is always equipped with the best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-044: Pressure Protection Valve - Air Brake System
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
47.8 mm (1.88 in)
Length
63.5 mm (2.5 in)
Closing Pressure
80 ± 5 PSI
Harmonized System (HS) Code
848120
Height
96.8 mm (3.81 in)
Country of Origin
Mexico
With Delivery Check Valve
No
Product Type
Non-Adjustable
Mounting
Ø .280 IN (2x)
Weight
0.71 lb
