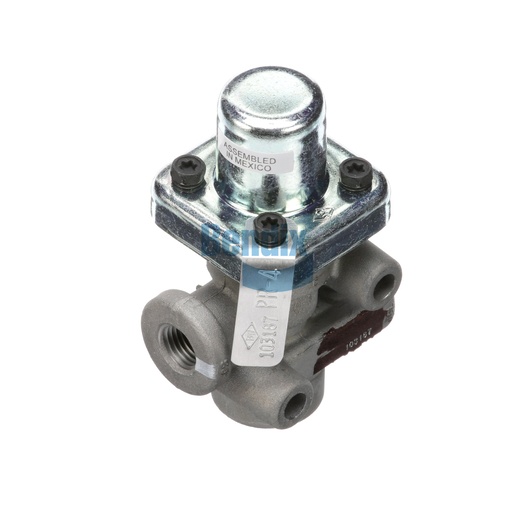

103187N
Pressure Protection Valve
Bendix
BACK ORDERED
Please contact us for information on lead time
$259.95
$311.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix pressure protection valve is a critical safety component in your vehicle's air brake system. Designed for reliability, this valve helps prevent air pressure loss, ensuring that your braking system functions correctly even under demanding conditions. Weighing only 0.3 kg, it offers a compact yet robust solution for maintaining air pressure stability. Its precision engineering allows for accurate pressure control and efficient operation, contributing to the overall safety of your vehicle. This valve is essential for protecting your air brake system from pressure fluctuations that could lead to failure. When choosing genuine Bendix OEM parts, Source One Parts Center is the best choice, providing quality components backed by exceptional service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-044: Pressure Protection Valve - Air Brake System
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Closing Pressure
103 PSI (REF)
Opening Pressure
118.25 ± 2.25 PSI
Maximum Operating Temperature
200 °F (93 °C)
Width
47.8 mm (1.88 in)
Length
63.5 mm (2.5 in)
Harmonized System (HS) Code
848120
Height
96.8 mm (3.81 in)
Country of Origin
Mexico
With Delivery Check Valve
No
Product Type
Non-Adjustable
Mounting
Ø .280 IN (2x)
Weight
0.73 lb
