103976N

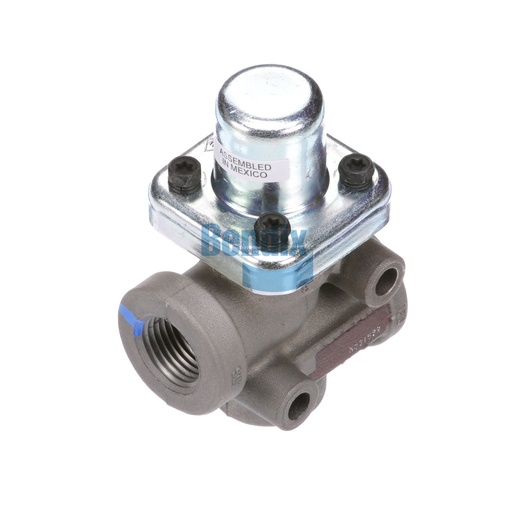

Pressure Protection Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Pressure Protection Valve from Bendix is a critical component designed to safeguard your air brake system. This valve ensures that air pressure is maintained within safe limits, preventing potential damage to the braking system and enhancing overall vehicle safety. With a closing pressure of 45 ± 5 PSI, it is engineered for reliability, even in demanding conditions. Its compact design and lightweight structure make installation straightforward, while the durable construction ensures long-lasting performance. This valve is essential for maintaining the integrity of your air brake system, providing peace of mind for fleet operators and drivers. For authentic Bendix parts that uphold quality and reliability, Source One Parts Center is the premier destination for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-044: Pressure Protection Valve - Air Brake System
Delivery Port
1/2-14 NPT
Supply Port
1/2-14 NPT
Maximum Operating Temperature
200 °F (93 °C)
Closing Pressure
45 ± 5 PSI
Width
47.8 mm (1.88 in)
Length
66.8 mm (2.63 in)
Harmonized System (HS) Code
848120
Height
96.8 mm (3.81 in)
Country of Origin
Mexico
With Delivery Check Valve
No
Product Type
Non-Adjustable
Mounting
Ø .280 IN (2x)
Weight
0.49 lb
