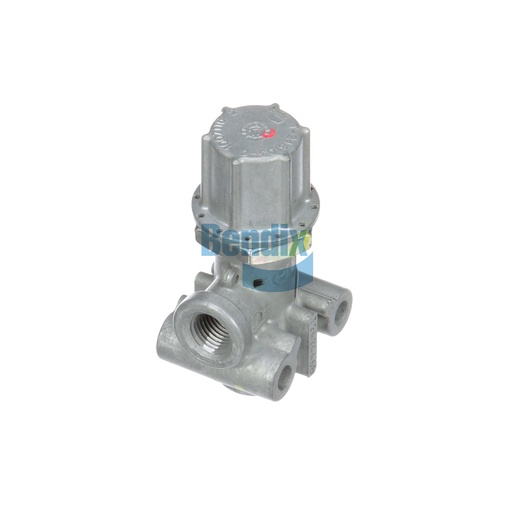

277148R
Pressure Protection Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Pressure Protection Valve from Bendix plays a crucial role in safeguarding your vehicle's air brake system. This component ensures that air pressure is maintained at safe levels, preventing potential issues that could compromise braking efficiency. With a design that facilitates easy installation and robust performance, it operates effectively across a wide temperature range from -40°F to 200°F, making it suited for various environmental conditions. It is engineered for durability, ensuring long-lasting service in demanding applications. By purchasing from Source One Parts Center, you can trust that you are getting genuine Bendix OEM parts that provide exceptional quality and reliability, enhancing the safety and performance of your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-044: Pressure Protection Valve - Air Brake System
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Harmonized System (HS) Code
848120
Closing Pressure
85 ± 5 PSI
Height
88.1 mm (3.47 in)
Product Type
Adjustable
Country of Origin
Mexico
With Delivery Check Valve
No
Mounting
Ø .271 IN (2x)
Weight
0.6 lb
