802305

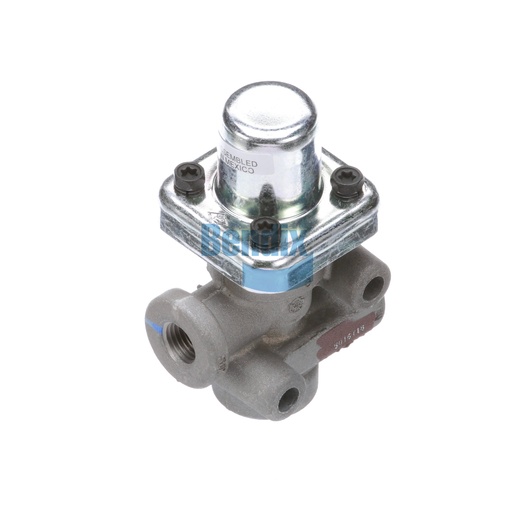

Pressure Protection Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Pressure Protection Valve by Bendix is designed to safeguard your vehicle's air brake system by maintaining appropriate pressure levels. This valve ensures that the necessary air supply is available for effective braking while preventing system overloads that can lead to failures. Engineered for durability, this non-adjustable valve operates efficiently across a wide range of temperatures, making it suitable for various commercial applications. Its compact design simplifies installation and allows for easy integration into existing systems, making it a practical choice for fleet maintenance. By ensuring a reliable air supply, the Pressure Protection Valve plays a vital role in enhancing the safety and performance of your fleet. When looking for genuine Bendix OEM parts, Source One Parts Center is your trusted source, offering quality and authenticity for all your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-044: Pressure Protection Valve - Air Brake System
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Closing Pressure
10 ± 5 PSI
Maximum Operating Temperature
200 °F (93 °C)
Width
47.8 mm (1.88 in)
Length
63.5 mm (2.5 in)
Harmonized System (HS) Code
848120
Height
96.8 mm (3.81 in)
Country of Origin
Mexico
With Delivery Check Valve
No
Product Type
Non-Adjustable
Mounting
Ø .280 IN (2x)
Weight
0.6 lb
