OR286500

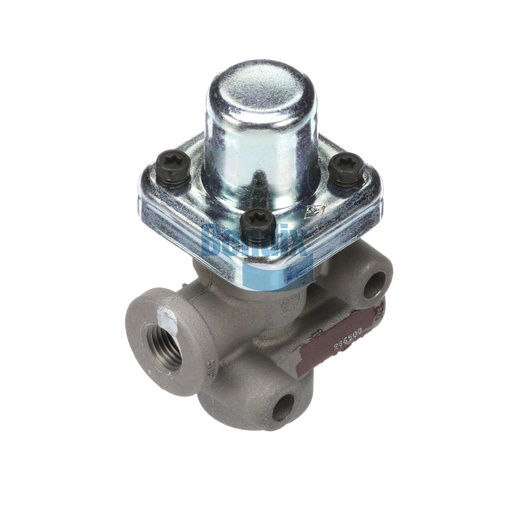

CORELESS VALVE
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Coreless Valve is engineered to protect air brake systems by managing pressure effectively. With an adjustable design and a maximum operating temperature of 200 °F, this valve ensures reliable performance even under extreme conditions. Weighing only 0.3 kg, it is compact and easy to install, making it ideal for heavy-duty applications. This valve plays a crucial role in maintaining air pressure within the system, enhancing the overall safety and efficiency of commercial vehicles. For those in need of reliable and genuine Bendix OEM parts, Source One Parts Center is the premier choice, offering parts that meet rigorous quality standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-044: Pressure Protection Valve - Air Brake System
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
47.8 mm (1.88 in)
Length
63.5 mm (2.5 in)
Harmonized System (HS) Code
848120
Closing Pressure
85 ± 5 PSI
Height
96.8 mm (3.81 in)
Country of Origin
Mexico
With Delivery Check Valve
No
Product Type
Non-Adjustable
Mounting
Ø .280 IN (2x)
Weight
0.71 lb
