$244.95
$293.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

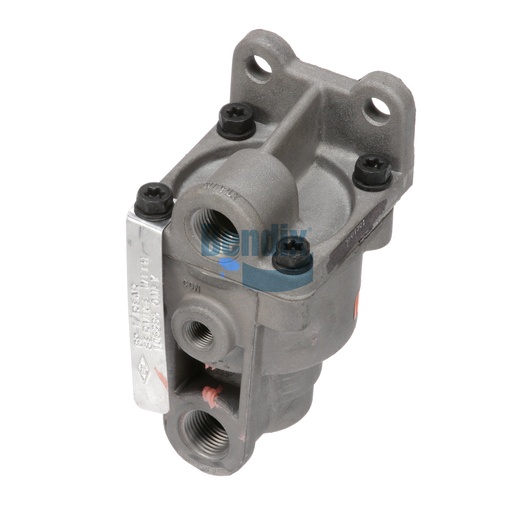

The Bendix Pressure Proportioning Valve is designed to optimize braking performance by regulating the pressure between the front and rear brakes. This component is essential for ensuring balanced braking, especially in various load conditions, enhancing vehicle safety and stability. Built with a rugged design, it withstands the rigors of commercial use while providing reliable operation in temperatures ranging from -40°F to 200°F. Its compact size facilitates easy installation, making it a practical choice for fleet maintenance. With precise control and durability, this valve is critical for maintaining efficient braking performance. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is your best resource.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-476: Proportioning Valve - Bobtail
Control Port
1/8-27 NPT
Nominal Equalizing Pressure (Blend Back)
105 PSI
Height
110.2 mm (4.34 in)
Delivery Port Orientation (CW from Mounting)
180°
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Supply Port
3/8-18 NPT
Width
59.9 mm (2.36 in)
Length
70.1 mm (2.76 in)
Nominal Hold-Off Pressure
8 PSI
Harmonized System (HS) Code
848120
Cautionary Note(s)
Do not replace Bendix BP-1 with LQ-5.
Country of Origin
Mexico
Exhaust Port
Open
Application
Rear Axle
Mounting
Ø .34 IN (2x)
Weight
0.95 lb
