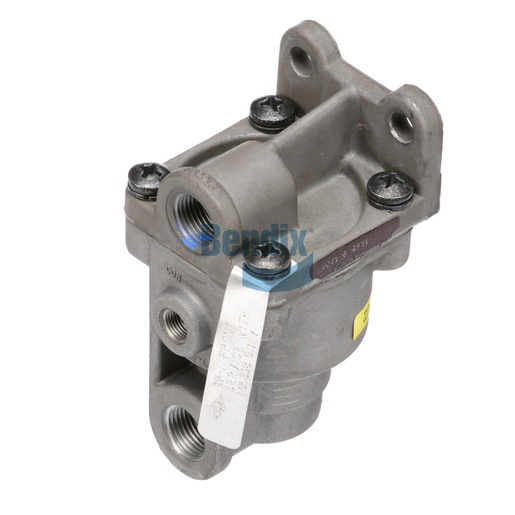

104598N
Press. Proportioning Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Press. Proportioning Valve from Bendix is designed to optimize braking performance in your commercial vehicle by regulating the pressure distribution between the front and rear braking systems. This valve is engineered for precision, ensuring that your brakes operate efficiently and responsively under various load conditions. With a durable construction that withstands harsh environments, this valve promotes effective braking and enhances vehicle safety. Its straightforward installation makes it an essential part for fleet managers looking to maintain high standards of performance. When it comes to choosing genuine parts, Source One Parts Center is the best choice for authentic Bendix OEM components, providing quality and reliability for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-476: Proportioning Valve - Bobtail
Control Port
1/8-27 NPT
Height
110.2 mm (4.34 in)
Delivery Port Orientation (CW from Mounting)
180°
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Supply Port
3/8-18 NPT
Nominal Hold-Off Pressure
4 PSI
Width
59.9 mm (2.36 in)
Nominal Equalizing Pressure (Blend Back)
60 PSI
Length
70.1 mm (2.76 in)
Harmonized System (HS) Code
848120
Cautionary Note(s)
Do not replace Bendix BP-1 with LQ-5.
Application
Front / Steer Axle
Country of Origin
Mexico
Exhaust Port
Open
Mounting
Ø .34 IN (2x)
Weight
0.9 lb
