276179

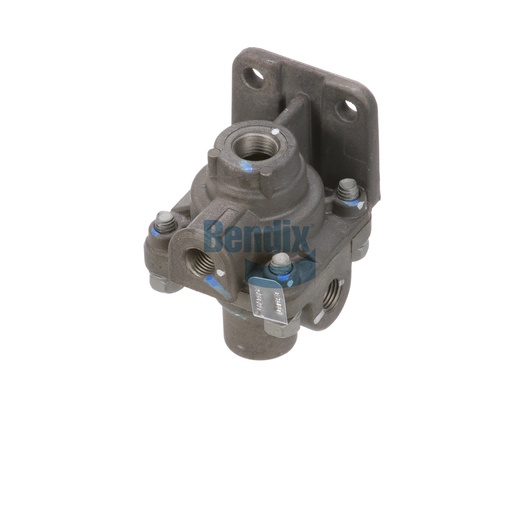

Press. Proportioning Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Pressure Proportioning Valve is a vital component in managing brake fluid distribution in commercial vehicles, ensuring balanced braking performance and enhanced safety. Weighing just 0.5 kg (1.01 lb), this compact valve is designed to meet the rigorous demands of heavy-duty applications. Manufactured in Mexico, it features a maximum operating temperature of 200 °F (93 °C) and a minimum of -40 °F (-40 °C), making it suitable for various environmental conditions. This valve is engineered for reliable performance with a limiting ratio of 50% limited delivery, providing precise control in brake applications. By integrating seamlessly into your braking system, it helps maintain optimal brake performance, especially under heavy loads. For those seeking genuine Bendix OEM parts, Source One Parts Center is your ultimate destination, offering exceptional service and guaranteed quality for all your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Control Port
1/4-18 NPT
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Height
100.6 mm (3.96 in)
Maximum Operating Temperature
200 °F (93 °C)
Supply Port
3/8-18 NPT
Limiting Ratio
50% Limited Delivery
Width
63.5 mm (2.5 in)
Length
77.2 mm (3.04 in)
Harmonized System (HS) Code
848120
Delivery Port Orientation (CW from Mounting)
90° / 270°
Country of Origin
Mexico
Exhaust Port
Open
Application
Standard
Mounting
Ø .34 IN (2x)
Weight
1.01 lb
