283525

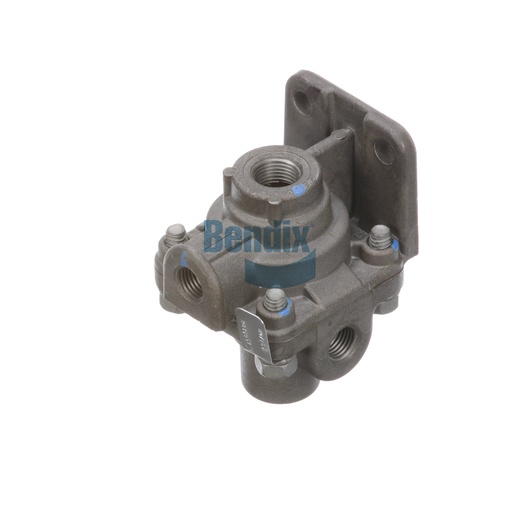

Press. Proportioning Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Pressure Proportioning Valve from Bendix is a critical component designed to ensure optimal brake balance and performance in your commercial vehicle. This valve regulates the distribution of air pressure to the brakes, enhancing control and stability during braking. Its intelligent design allows for effective modulation of brake force, ensuring that the vehicle responds predictably under various load conditions. With a robust construction that can withstand harsh environments, this valve is engineered for reliability and longevity, making it an excellent investment for fleet maintenance. Additionally, maintaining proper brake pressure not only improves safety but also extends the lifespan of braking components, thereby reducing overall maintenance costs. Source One Parts Center is your go-to destination for genuine Bendix OEM parts, delivering quality and support to meet all your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Control Port
1/4-18 NPT
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Height
100.6 mm (3.96 in)
Maximum Operating Temperature
200 °F (93 °C)
Supply Port
3/8-18 NPT
Limiting Ratio
50% Limited Delivery
Width
63.5 mm (2.5 in)
Length
77.2 mm (3.04 in)
Harmonized System (HS) Code
848120
Delivery Port Orientation (CW from Mounting)
90° / 270°
Country of Origin
Mexico
Exhaust Port
Open
Application
Standard
Mounting
Ø .34 IN (2x)
Weight
1.12 lb
