OR229505

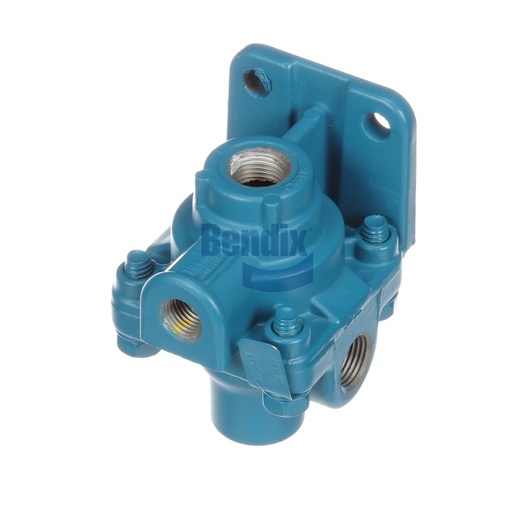

CORELESS VALVE
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Coreless Valve is a critical component designed to optimize the performance of brake systems in commercial vehicles. Its precise engineering ensures efficient fluid management, contributing to the overall reliability of the braking system. With features like multiple ports for optimal fluid control and a robust design to withstand demanding conditions, this valve is essential for maintaining safe operation. When looking for genuine Bendix OEM parts, Source One Parts Center is the best option, providing high-quality components that ensure the reliability of your vehicle's braking system.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Control Port
1/4-18 NPT
Height
100.6 mm (3.96 in)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Supply Port
3/8-18 NPT
Limiting Ratio
50% Limited Delivery
Width
63.5 mm (2.5 in)
Length
77.2 mm (3.04 in)
Harmonized System (HS) Code
848120
Delivery Port Orientation (CW from Mounting)
90° / 270°
Country of Origin
Mexico
Exhaust Port
Open
Application
Standard
Mounting
Ø .34 IN (2x)
Weight
0.99 lb
