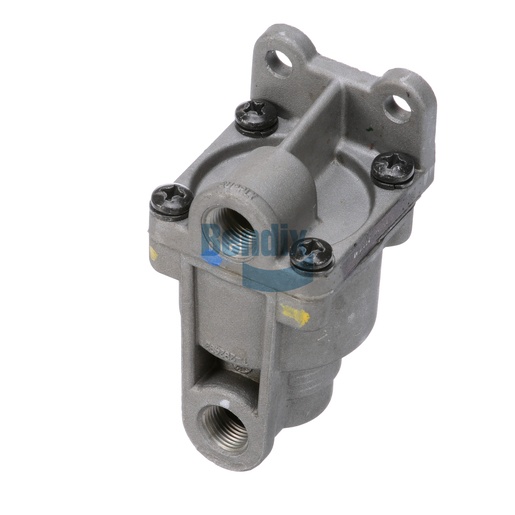

101311N
Press. Proportioning Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Pressure Proportioning Valve is an essential component that optimizes braking performance by balancing air pressure across your vehicle's braking system. Designed for heavy-duty applications, this valve ensures that braking force is evenly distributed, enhancing safety and control during operation. Its robust construction allows it to withstand high pressures and environmental stresses, making it ideal for commercial vehicles. By maintaining consistent pressure levels, this valve helps prevent premature wear on brake components and contributes to the longevity of your air brake system. Regular inspection and timely replacement of the proportioning valve are crucial for optimal brake performance. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, delivering quality and reliability essential for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-039: Automatic Proportioning Valve - Front Axle
Height
110.2 mm (4.34 in)
Delivery Port Orientation (CW from Mounting)
180°
Nominal Hold-Off Pressure
20 PSI
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Supply Port
3/8-18 NPT
Width
59.9 mm (2.36 in)
Length
64.8 mm (2.55 in)
Nominal Equalizing Pressure (Blend Back)
70 PSI
Harmonized System (HS) Code
848120
Application
Front / Steer Axle
Country of Origin
Mexico
Exhaust Port
Open
Mounting
Ø .34 IN (2x)
Weight
0.88 lb
