$144.95
$173.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

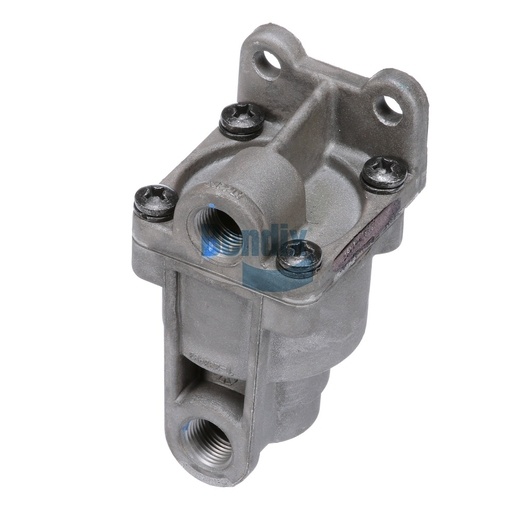

The Bendix pressure proportioning valve is an essential component for maintaining balanced braking performance across your vehicle’s axle systems. Designed to optimize brake pressure distribution, this valve ensures that both front and rear brakes engage effectively, enhancing safety and control during operation. Engineered for durability, it operates efficiently under a wide temperature range, making it suitable for various driving conditions. With a compact design that allows easy installation, this valve integrates seamlessly into your braking system, ensuring reliability in critical situations. For those who demand the best for their commercial vehicles, the Bendix pressure proportioning valve is a must-have. Source One Parts Center is the ideal place to purchase genuine Bendix OEM parts, guaranteeing quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-039: Automatic Proportioning Valve - Front Axle
Height
110.2 mm (4.34 in)
Delivery Port Orientation (CW from Mounting)
180°
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Supply Port
3/8-18 NPT
Nominal Hold-Off Pressure
4 PSI
Width
59.9 mm (2.36 in)
Nominal Equalizing Pressure (Blend Back)
60 PSI
Length
64.8 mm (2.55 in)
Harmonized System (HS) Code
848110,848120
Application
Front / Steer Axle
Country of Origin
Mexico
Exhaust Port
Open
Mounting
Ø .34 IN (2x)
Weight
1.01 lb
