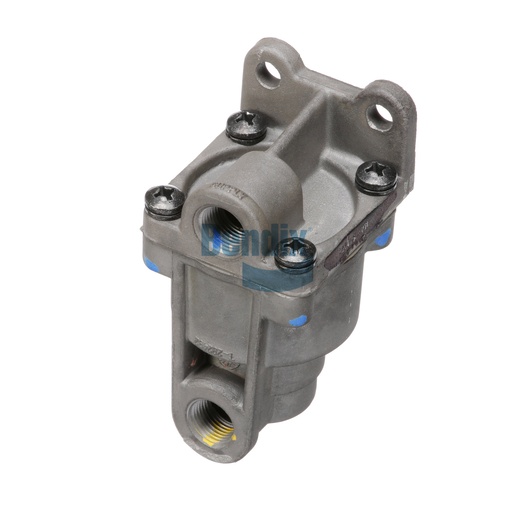

289145N
Press. Proportioning Valve
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$164.95
$197.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Pressure Proportioning Valve is an essential component designed to optimize brake performance by managing pressure distribution in the brake system. This valve ensures that the appropriate amount of pressure is applied to the brakes, significantly enhancing vehicle control and reducing the risk of skidding. With a net weight of just 0.4 kg, it is compact yet robust, making it ideal for various commercial applications. This valve's sophisticated design allows for quick response times, ensuring that your braking system operates smoothly and efficiently. By choosing this pressure proportioning valve, you can improve your vehicle’s braking effectiveness, which is crucial for safety and performance. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, providing unmatched quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-039: Automatic Proportioning Valve - Front Axle
Height
110.2 mm (4.34 in)
Delivery Port Orientation (CW from Mounting)
180°
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Supply Port
3/8-18 NPT
Nominal Hold-Off Pressure
4 PSI
Width
59.9 mm (2.36 in)
Nominal Equalizing Pressure (Blend Back)
60 PSI
Length
64.8 mm (2.55 in)
Harmonized System (HS) Code
848120
Application
Front / Steer Axle
Country of Origin
Mexico
Exhaust Port
Open
Mounting
Ø .34 IN (2x)
Weight
0.93 lb
