$139.95
$167.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

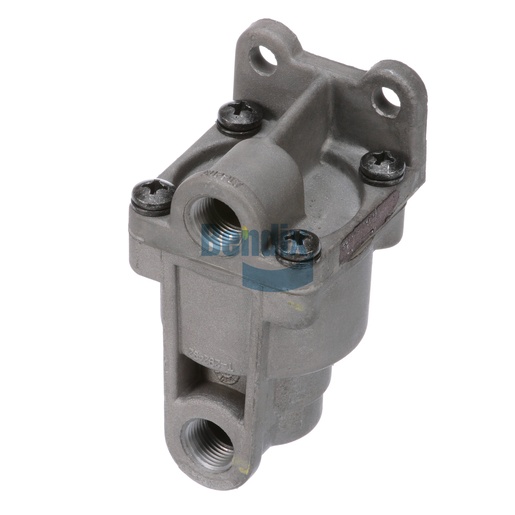

The Bendix Pressure Proportioning Valve is a vital component designed to optimize braking performance in commercial vehicles. This valve regulates the pressure distribution between the front and rear axles, ensuring balanced braking and enhancing overall safety. With its robust design and high-quality materials, this valve can withstand the demanding conditions of heavy-duty applications, providing reliable operation over time. Its easy installation and maintenance requirements make it an ideal choice for fleet managers looking to enhance vehicle performance without significant downtime. This valve plays a crucial role in preventing wheel lock-up during braking, which can lead to safer stopping distances and improved vehicle control. At Source One Parts Center, we pride ourselves on offering genuine Bendix OEM parts that ensure your commercial vehicles run smoothly and safely, giving you peace of mind on the road.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-039: Automatic Proportioning Valve - Front Axle
Nominal Hold-Off Pressure
10 PSI
Height
110.2 mm (4.34 in)
Delivery Port Orientation (CW from Mounting)
180°
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Supply Port
3/8-18 NPT
Width
59.9 mm (2.36 in)
Length
64.8 mm (2.55 in)
Nominal Equalizing Pressure (Blend Back)
65 PSI
Harmonized System (HS) Code
848110,848120
Application
Front / Steer Axle
Country of Origin
Mexico
Exhaust Port
Open
Mounting
Ø .34 IN (2x)
Weight
0.9 lb
