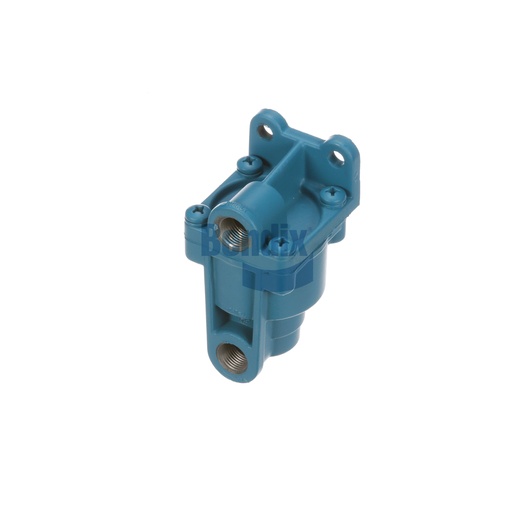

289148R
Press. Proportioning Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Automatic Pressure Proportioning Valve from Bendix is designed to optimize brake force distribution in commercial vehicles, ensuring safety and performance in all driving conditions. This valve is particularly suited for front or steer axles, offering a nominal hold-off pressure of 10 PSI, which enhances braking responsiveness. With an operational temperature range from -40°F to 200°F, it is built to withstand extreme environments, ensuring consistent performance. The valve's compact dimensions and lightweight design make installation straightforward and adaptable to various vehicle configurations. By regulating air pressure effectively, this valve contributes to smoother braking operations and improved vehicle handling. Source One Parts Center is your premier source for genuine Bendix OEM parts, ensuring you receive the highest quality components for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-039: Automatic Proportioning Valve - Front Axle
Nominal Hold-Off Pressure
10 PSI
Height
110.2 mm (4.34 in)
Delivery Port Orientation (CW from Mounting)
180°
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Supply Port
3/8-18 NPT
Width
59.9 mm (2.36 in)
Length
64.8 mm (2.55 in)
Nominal Equalizing Pressure (Blend Back)
65 PSI
Harmonized System (HS) Code
848120
Application
Front / Steer Axle
Country of Origin
Mexico
Exhaust Port
Open
Mounting
Ø .34 IN (2x)
Weight
0.9 lb
